This tutorial demonstrates how to use Spring Security Method Level Annotations. We can use Spring Security to secure our service layer. We can restrict which roles are able to execute a method by annotating the method with any of spring security annotations or the standard java JSR-250 annotaitons.

Maven Dependencies

We use Apache Maven to manage our project dependencies. Make sure the following dependencies reside on the class-path.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
                             http://maven.apache.org/xsd/maven-4.0.0.xsd">

    <modelVersion>4.0.0</modelVersion>
    <groupId>com.memorynotfound.spring.security</groupId>
    <artifactId>method-level-security</artifactId>
    <version>1.0.0-SNAPSHOT</version>
    <url>http://memorynotfound.com</url>
    <name>Spring Security - ${project.artifactId}</name>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>1.5.8.RELEASE</version>
    </parent>

    <properties>
        <java.version>1.8</java.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>javax.annotation</groupId>
            <artifactId>jsr250-api</artifactId>
            <version>1.0</version>
        </dependency>


        <!-- testing -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

Enable Method Level Security

By annotating the class with @EnableGlobalMethodSecurity, we can enable method level security using annotations. We can optionally configure which annotations we’ll allow. You can enable one of the following.

• securedEnabled – enables the spring @Secured annotation.
• jsr250Enabled – enables the JSR-250 standard java security annotations.
• prePostEnabled – enables the spring @PreAuthorize and PostAuthorize annotations.

package com.memorynotfound.spring.security.config;

import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;

@Configuration
@EnableGlobalMethodSecurity(
        securedEnabled = true,
        jsr250Enabled = true,
        prePostEnabled = true)
public class SecurityConfig extends WebSecurityConfigurerAdapter {

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http.httpBasic();
    }

    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
        auth.inMemoryAuthentication()
                .withUser("user").password("password").roles("USER")
            .and()
                .withUser("admin").password("password").roles("ADMIN");
    }

}

The equivalent Spring Security XML Configuration spring-security-config.xml is located in the src/main/resources folder.

<?xml version="1.0" encoding="UTF-8"?>
<beans:beans xmlns="http://www.springframework.org/schema/security"
             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xmlns:beans="http://www.springframework.org/schema/beans"
             xsi:schemaLocation="http://www.springframework.org/schema/security
                                 http://www.springframework.org/schema/security/spring-security.xsd
                                 http://www.springframework.org/schema/beans
                                 http://www.springframework.org/schema/beans/spring-beans.xsd">

    <global-method-security
            secured-annotations="enabled"
            jsr250-annotations="enabled"
            pre-post-annotations="enabled"/>

    <http>
        <http-basic/>
    </http>

    <authentication-manager>
        <authentication-provider>
            <user-service>
                <user name="user"
                      password="password"
                      authorities="ROLE_USER" />
                <user name="manager"
                      password="password"
                      authorities="ROLE_MANAGER" />
            </user-service>
        </authentication-provider>
    </authentication-manager>

</beans:beans>

Spring Security Secured Annotations

Adding an annotation to a method (on a class or interface) limits the access to that method accordingly. Here we used the @Secured annotation.

package com.memorynotfound.spring.security.web;

import org.springframework.security.access.annotation.Secured;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping("book")
public class BookController {

    @GetMapping("anonymous")
    @Secured("ROLE_ANONYMOUS")
    public String anonymously() {
        return "Hello, World!";
    }

    @GetMapping("has-role")
    @Secured("ROLE_ADMIN")
    public String hasRole() {
        return "Hello, World!";
    }

}

Spring Security JSR-250 Annotations

Adding an annotation to a method (on a class or interface) limits the access to that method accordingly. Here we used the @PermitAll and @RolesAllowed annotations.

package com.memorynotfound.spring.security.web;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.security.PermitAll;
import javax.annotation.security.RolesAllowed;

@RestController
@RequestMapping("/user")
public class UserController {

    @GetMapping("anonymous")
    @PermitAll
    public String anonymously() {
        return "Hello, World!";
    }

    @GetMapping("has-role")
    @RolesAllowed({"ROLE_ADMIN"})
    public String hasRole() {
        return "Hello, World!";
    }

}

Spring Security Pre Post Annotations

Adding an annotation to a method (on a class or interface) limits the access to that method accordingly. Here we used the @PreAuthorize annotation.

package com.memorynotfound.spring.security.web;

import org.springframework.security.access.prepost.PreAuthorize;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping("bank")
public class BankController {

    @GetMapping("anonymous")
    @PreAuthorize("permitAll()")
    public String anonymously() {
        return "Hello, World!";
    }

    @GetMapping("has-role")
    @PreAuthorize("hasAnyAuthority('ROLE_ADMIN')")
    public String hasRole() {
        return "Hello, World!";
    }

}

Demo

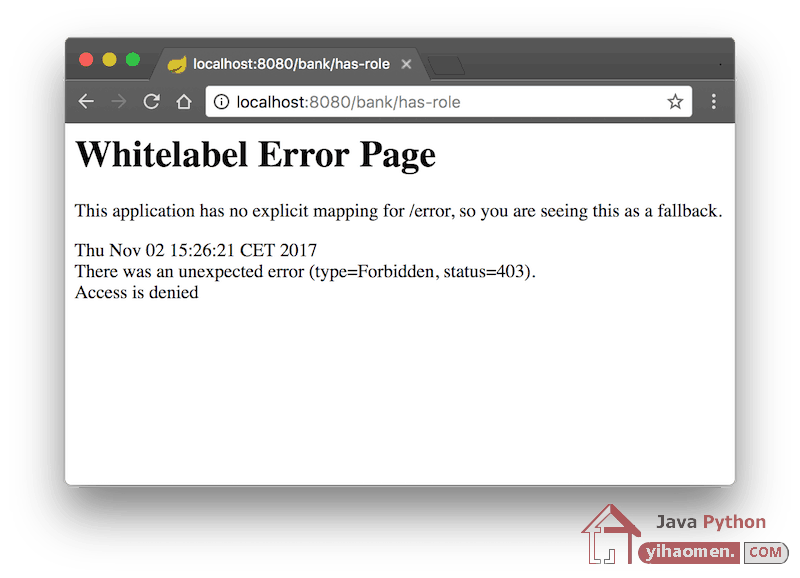

Access http://localhost:8080/bank/has-role with user: user.

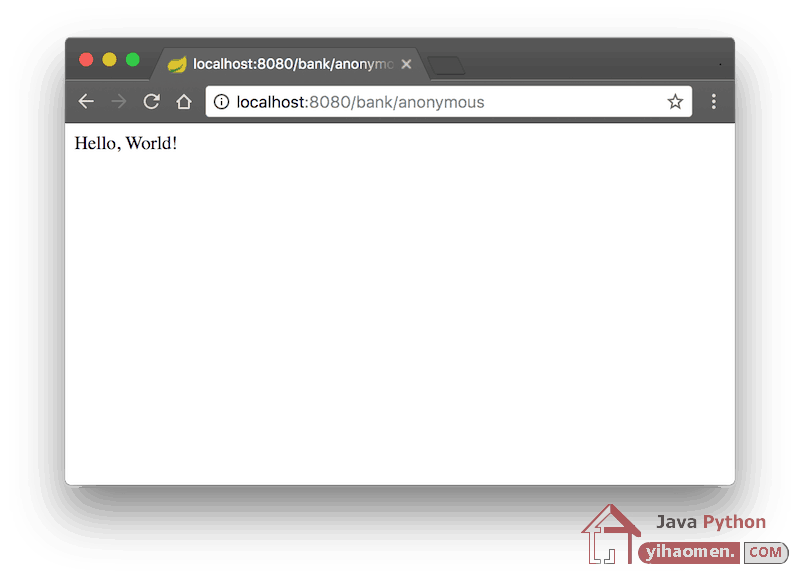

Access http://localhost:8080/bank/anonymous with user: user.

Spring Security Method Level Annotations Integration Test

We can use MockMvc to write some spring integration tests.

package com.memorynotfound.spring.security.test;

import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.autoconfigure.web.servlet.AutoConfigureMockMvc;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;
import org.springframework.test.web.servlet.MockMvc;

import static org.springframework.security.test.web.servlet.request.SecurityMockMvcRequestPostProcessors.httpBasic;
import static org.springframework.test.web.servlet.request.MockMvcRequestBuilders.get;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.status;

@SpringBootTest
@AutoConfigureMockMvc
@RunWith(SpringJUnit4ClassRunner.class)
public class BasicAuthenticationIntegrationTests {

    @Autowired
    private MockMvc mockMvc;

    @Test
    public void accessAnonymous() throws Exception {
        this.mockMvc.perform(
                get("/bank/anonymous")
                        .with(httpBasic("user", "password")))
                .andExpect(
                        status().isOk());
    }

    @Test
    public void accessRoleProtected() throws Exception {
        this.mockMvc.perform(
                get("/bank/has-role")
                        .with(httpBasic("user", "password")))
                .andExpect(
                        status().is4xxClientError());
    }

}

Spring Security Integration Test Results

Download
