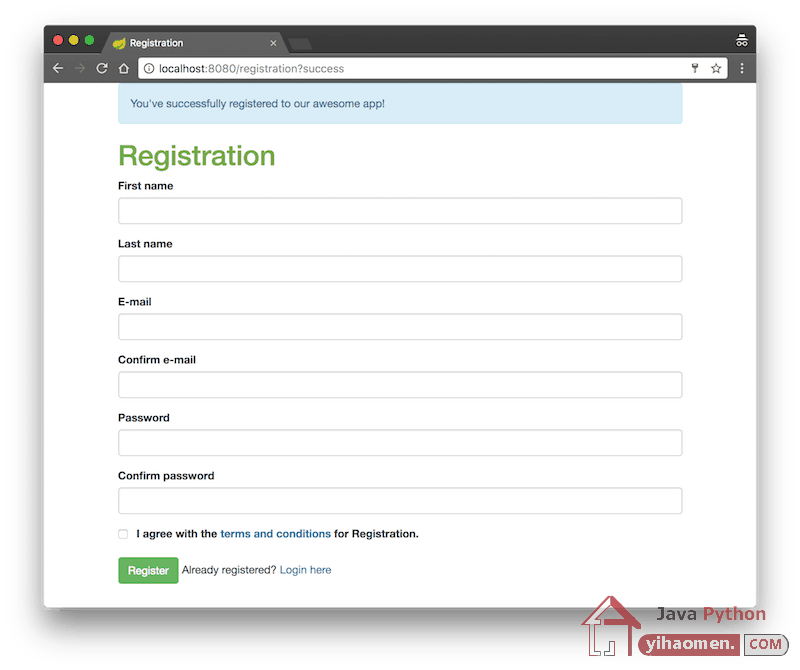

In this example we show how to create a user registration form with Spring Security, Hibernate and Thymeleaf. We validate the user registration fields with hibernate validator annotations and a custom field matching validator to validate if the email and/or password fields match.

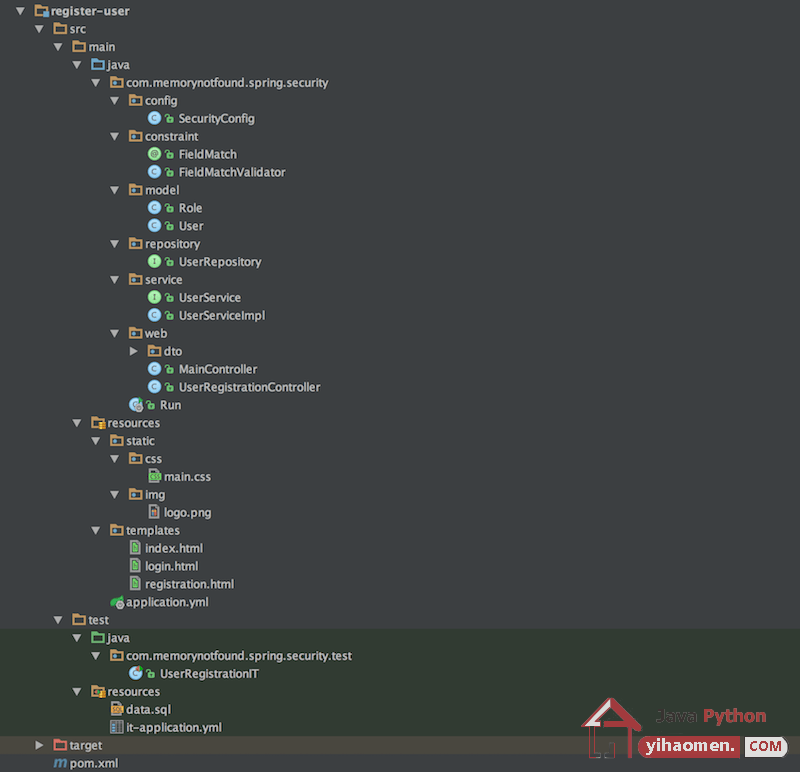

Project Structure

Let’s start by looking at the project structure.

Maven Dependencies

We use Apache Maven to manage our project dependencies. Make sure the following dependencies reside on the class-path.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
                             http://maven.apache.org/xsd/maven-4.0.0.xsd">

    <modelVersion>4.0.0</modelVersion>
    <groupId>com.memorynotfound.spring.security</groupId>
    <artifactId>register-user</artifactId>
    <version>1.0.0-SNAPSHOT</version>
    <url>http://memorynotfound.com</url>
    <name>Spring Security - ${project.artifactId}</name>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>1.5.8.RELEASE</version>
    </parent>

    <properties>
        <java.version>1.8</java.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <dependency>
            <groupId>org.thymeleaf.extras</groupId>
            <artifactId>thymeleaf-extras-springsecurity4</artifactId>
        </dependency>
        <dependency>
            <groupId>commons-beanutils</groupId>
            <artifactId>commons-beanutils</artifactId>
        </dependency>

        <!-- bootstrap and jquery -->
        <dependency>
            <groupId>org.webjars</groupId>
            <artifactId>bootstrap</artifactId>
            <version>3.3.7</version>
        </dependency>
        <dependency>
            <groupId>org.webjars</groupId>
            <artifactId>jquery</artifactId>
            <version>3.2.1</version>
        </dependency>

        <!-- mysql connector -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>

        <!-- testing -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>com.h2database</groupId>
            <artifactId>h2</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

Spring Security Configuration

We secure our application using Spring Security Form Authentication using the following configuration. Make sure you permit all access to the /registration page and your static resources.

package com.memorynotfound.spring.security.config;

import com.memorynotfound.spring.security.service.UserService;
import com.memorynotfound.spring.security.service.UserServiceImpl;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.authentication.dao.DaoAuthenticationProvider;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.web.util.matcher.AntPathRequestMatcher;

@Configuration
public class SecurityConfig extends WebSecurityConfigurerAdapter {

    @Autowired
    private UserService userService;

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http
                .authorizeRequests()
                    .antMatchers(
                            "/registration",
                            "/js/**",
                            "/css/**",
                            "/img/**",
                            "/webjars/**").permitAll()
                    .anyRequest().authenticated()
                .and()
                    .formLogin()
                        .loginPage("/login")
                            .permitAll()
                .and()
                    .logout()
                        .invalidateHttpSession(true)
                        .clearAuthentication(true)
                        .logoutRequestMatcher(new AntPathRequestMatcher("/logout"))
                        .logoutSuccessUrl("/login?logout")
                .permitAll();
    }

    @Bean
    public BCryptPasswordEncoder passwordEncoder(){
        return new BCryptPasswordEncoder();
    }

    @Bean
    public DaoAuthenticationProvider authenticationProvider(){
        DaoAuthenticationProvider auth = new DaoAuthenticationProvider();
        auth.setUserDetailsService(userService);
        auth.setPasswordEncoder(passwordEncoder());
        return auth;
    }

    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
        auth.authenticationProvider(authenticationProvider());
    }

}

Spring Boot + Hibernate Configuration

We configure Hiberante using the application.yml file located in the src/main/resources/ folder.

# ===============================
# = Hibernate datasource
# ===============================
spring:
  datasource:
    url: jdbc:mysql://localhost:3306/spring_security_hibernate
    username: root
    password:

# ===============================
# = JPA configurations
# ===============================
  jpa:
    show-sql: true
    hibernate:
      ddl-auto: create-drop
    database-platform: MYSQL
    properties:
      hibernate.dialect: org.hibernate.dialect.MySQL5Dialect

# ===============================
# = Logging configurations
# ===============================
logging:
  level:
    root: WARN
    com.memorynotfound: DEBUG
    org.springframework.web: INFO
    org.springframework.security: INFO

User Registration Controller

This controller is mapped to “/registration” URI. We use the UserRegistrationDto to process and validate the user registration form and inject it using the @ModelAttribute("user") annotation. When the form is submitted it’s automatically validated and errors are available in the BindingResult. Next, we check if a user doesn’t already exist with the submitted email. If the form has any errors, we return to the registration page. Otherwise we redirect and inform the user the registration procedure is complete.

package com.memorynotfound.spring.security.web;

import com.memorynotfound.spring.security.model.User;
import com.memorynotfound.spring.security.service.UserService;
import com.memorynotfound.spring.security.web.dto.UserRegistrationDto;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.validation.BindingResult;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import javax.validation.Valid;

@Controller
@RequestMapping("/registration")
public class UserRegistrationController {

    @Autowired
    private UserService userService;

    @ModelAttribute("user")
    public UserRegistrationDto userRegistrationDto() {
        return new UserRegistrationDto();
    }

    @GetMapping
    public String showRegistrationForm(Model model) {
        return "registration";
    }

    @PostMapping
    public String registerUserAccount(@ModelAttribute("user") @Valid UserRegistrationDto userDto,
                                      BindingResult result){

        User existing = userService.findByEmail(userDto.getEmail());
        if (existing != null){
            result.rejectValue("email", null, "There is already an account registered with that email");
        }

        if (result.hasErrors()){
            return "registration";
        }

        userService.save(userDto);
        return "redirect:/registration?success";
    }

}

This is a simple controller for managing trivial thymeleaf pages.

package com.memorynotfound.spring.security.web;

import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;

@Controller
public class MainController {

    @GetMapping("/")
    public String root() {
        return "index";
    }

    @GetMapping("/login")
    public String login(Model model) {
        return "login";
    }

    @GetMapping("/user")
    public String userIndex() {
        return "user/index";
    }
}

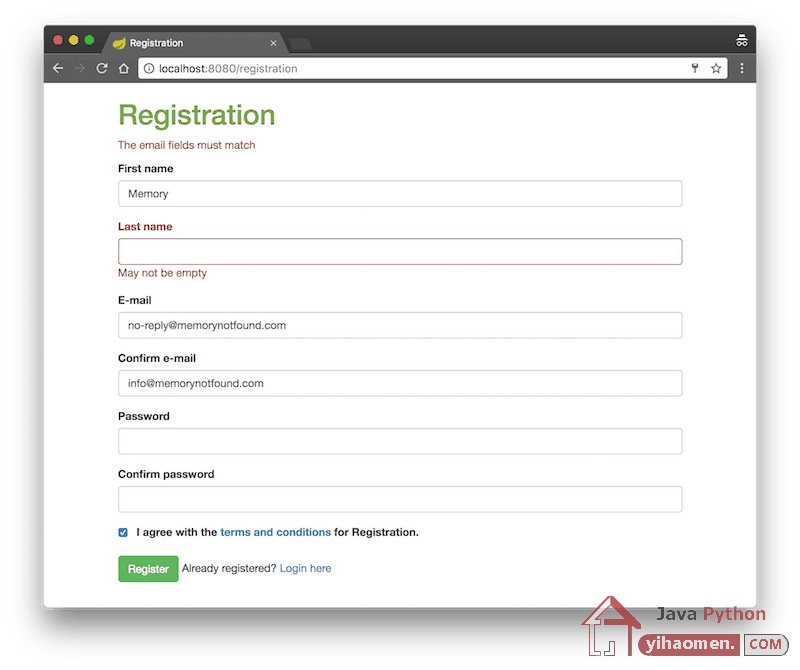

We use the UserRegistrationDto to validate the user registration form. This DTO is annotated using Hibernate-Validation annotations which validate trivial fields on empty and our own custom @FieldMatch annotations which validates if the password is equal to the confirm password and the email address field is equal to the confirm email address field.

package com.memorynotfound.spring.security.web.dto;

import com.memorynotfound.spring.security.constraint.FieldMatch;
import org.hibernate.validator.constraints.Email;
import org.hibernate.validator.constraints.NotEmpty;
import javax.validation.constraints.AssertTrue;

@FieldMatch.List({
        @FieldMatch(first = "password", second = "confirmPassword", message = "The password fields must match"),
        @FieldMatch(first = "email", second = "confirmEmail", message = "The email fields must match")
})
public class UserRegistrationDto {

    @NotEmpty
    private String firstName;

    @NotEmpty
    private String lastName;

    @NotEmpty
    private String password;

    @NotEmpty
    private String confirmPassword;

    @Email
    @NotEmpty
    private String email;

    @Email
    @NotEmpty
    private String confirmEmail;

    @AssertTrue
    private Boolean terms;

    public String getFirstName() {
        return firstName;
    }

    public void setFirstName(String firstName) {
        this.firstName = firstName;
    }

    public String getLastName() {
        return lastName;
    }

    public void setLastName(String lastName) {
        this.lastName = lastName;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public String getConfirmPassword() {
        return confirmPassword;
    }

    public void setConfirmPassword(String confirmPassword) {
        this.confirmPassword = confirmPassword;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }

    public String getConfirmEmail() {
        return confirmEmail;
    }

    public void setConfirmEmail(String confirmEmail) {
        this.confirmEmail = confirmEmail;
    }

    public Boolean getTerms() {
        return terms;
    }

    public void setTerms(Boolean terms) {
        this.terms = terms;
    }

}

Creating Field Matching Validator

We created a special @FieldMatch annotation to support the validation process of comparing fields with each other if they match. We can input two fields first and second and an optional message.

package com.memorynotfound.spring.security.constraint;

import javax.validation.Payload;
import javax.validation.Constraint;
import java.lang.annotation.Documented;
import java.lang.annotation.Retention;
import java.lang.annotation.Target;
import static java.lang.annotation.ElementType.ANNOTATION_TYPE;
import static java.lang.annotation.ElementType.TYPE;
import static java.lang.annotation.RetentionPolicy.RUNTIME;

@Target({TYPE, ANNOTATION_TYPE})
@Retention(RUNTIME)
@Constraint(validatedBy = FieldMatchValidator.class)
@Documented
public @interface FieldMatch
{
    String message() default "";
    Class<?>[] groups() default {};
    Class<? extends Payload>[] payload() default {};
    String first();
    String second();

    @Target({TYPE, ANNOTATION_TYPE})
    @Retention(RUNTIME)
    @Documented
    @interface List
    {
        FieldMatch[] value();
    }
}

Next we create a custom validator by implementing the ConstraintValidator. Here we can validate if the given input fields match. If they do we return true if the fields don’t match we return false.

package com.memorynotfound.spring.security.constraint;

import org.apache.commons.beanutils.BeanUtils;

import javax.validation.ConstraintValidator;
import javax.validation.ConstraintValidatorContext;

public class FieldMatchValidator implements ConstraintValidator<FieldMatch, Object> {

    private String firstFieldName;
    private String secondFieldName;
    private String message;

    @Override
    public void initialize(final FieldMatch constraintAnnotation) {
        firstFieldName = constraintAnnotation.first();
        secondFieldName = constraintAnnotation.second();
        message = constraintAnnotation.message();
    }

    @Override
    public boolean isValid(final Object value, final ConstraintValidatorContext context) {
        boolean valid = true;
        try
        {
            final Object firstObj = BeanUtils.getProperty(value, firstFieldName);
            final Object secondObj = BeanUtils.getProperty(value, secondFieldName);

            valid =  firstObj == null && secondObj == null || firstObj != null && firstObj.equals(secondObj);
        }
        catch (final Exception ignore)
        {
            // ignore
        }

        if (!valid){
            context.buildConstraintViolationWithTemplate(message)
                    .addPropertyNode(firstFieldName)
                    .addConstraintViolation()
                    .disableDefaultConstraintViolation();
        }

        return valid;
    }
}

UserDetailsService

The UserService extends the UserDetailsService interface.

package com.memorynotfound.spring.security.service;

import com.memorynotfound.spring.security.model.User;
import com.memorynotfound.spring.security.web.dto.UserRegistrationDto;
import org.springframework.security.core.userdetails.UserDetailsService;

public interface UserService extends UserDetailsService {

    User findByEmail(String email);

    User save(UserRegistrationDto registration);
}

In the UserServiceImpl we implement the methods to lookup a user by email and to save the user registration using the UserRegistrationDto. Make sure when you save the user you’ll encode his password using the BCryptPasswordEncoder. Otherwise, database administrator’ll be able to see his password in clear text.

package com.memorynotfound.spring.security.service;

import com.memorynotfound.spring.security.model.Role;
import com.memorynotfound.spring.security.model.User;
import com.memorynotfound.spring.security.repository.UserRepository;
import com.memorynotfound.spring.security.web.dto.UserRegistrationDto;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.stereotype.Service;

import java.util.Arrays;
import java.util.Collection;
import java.util.stream.Collectors;

@Service
public class UserServiceImpl implements UserService {

    @Autowired
    private UserRepository userRepository;

    @Autowired
    private BCryptPasswordEncoder passwordEncoder;

    @Override
    public UserDetails loadUserByUsername(String email) throws UsernameNotFoundException {
        User user = userRepository.findByEmail(email);
        if (user == null){
            throw new UsernameNotFoundException("Invalid username or password.");
        }
        return new org.springframework.security.core.userdetails.User(user.getEmail(),
                user.getPassword(),
                mapRolesToAuthorities(user.getRoles()));
    }

    public User findByEmail(String email){
        return userRepository.findByEmail(email);
    }

    public User save(UserRegistrationDto registration){
        User user = new User();
        user.setFirstName(registration.getFirstName());
        user.setLastName(registration.getLastName());
        user.setEmail(registration.getEmail());
        user.setPassword(passwordEncoder.encode(registration.getPassword()));
        user.setRoles(Arrays.asList(new Role("ROLE_USER")));
        return userRepository.save(user);
    }

    private Collection<? extends GrantedAuthority> mapRolesToAuthorities(Collection<Role> roles){
        return roles.stream()
                .map(role -> new SimpleGrantedAuthority(role.getName()))
                .collect(Collectors.toList());
    }
}

User Repository

We create the UserRepository by extending the JpaRepository interface. This is a Spring Data interface and gives us all the CRUD operations automatically.

package com.memorynotfound.spring.security.repository;

import com.memorynotfound.spring.security.model.User;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

@Repository
public interface UserRepository extends JpaRepository<User, Long> {

    User findByEmail(String email);

}

Hibernate Mappings

We have annotated our User and Role objects with Java Persistence API annotations. These annotations are used to map our pojo’s to the database.

package com.memorynotfound.spring.security.model;

import javax.persistence.*;
import java.util.Collection;

@Entity
@Table(uniqueConstraints = @UniqueConstraint(columnNames = "email"))
public class User {

    @Id
    @GeneratedValue(strategy = GenerationType.AUTO)
    private Long id;

    private String firstName;
    private String lastName;
    private String email;
    private String password;

    @ManyToMany(fetch = FetchType.EAGER, cascade = CascadeType.ALL)
    @JoinTable(
            name = "users_roles",
            joinColumns = @JoinColumn(
                    name = "user_id", referencedColumnName = "id"),
            inverseJoinColumns = @JoinColumn(
                    name = "role_id", referencedColumnName = "id"))
    private Collection<Role> roles;

    public User() {
    }

    public User(String firstName, String lastName, String email, String password) {
        this.firstName = firstName;
        this.lastName = lastName;
        this.email = email;
        this.password = password;
    }

    public User(String firstName, String lastName, String email, String password, Collection<Role> roles) {
        this.firstName = firstName;
        this.lastName = lastName;
        this.email = email;
        this.password = password;
        this.roles = roles;
    }

    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }

    public String getFirstName() {
        return firstName;
    }

    public void setFirstName(String firstName) {
        this.firstName = firstName;
    }

    public String getLastName() {
        return lastName;
    }

    public void setLastName(String lastName) {
        this.lastName = lastName;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public Collection<Role> getRoles() {
        return roles;
    }

    public void setRoles(Collection<Role> roles) {
        this.roles = roles;
    }

    @Override
    public String toString() {
        return "User{" +
                "id=" + id +
                ", firstName='" + firstName + '\'' +
                ", lastName='" + lastName + '\'' +
                ", email='" + email + '\'' +
                ", password='" + "*********" + '\'' +
                ", roles=" + roles +
                '}';
    }
}

package com.memorynotfound.spring.security.model;

import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;

@Entity
public class Role {

    @Id
    @GeneratedValue(strategy = GenerationType.AUTO)
    private Long id;
    private String name;

    public Role() {
    }

    public Role(String name) {
        this.name = name;
    }

    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    @Override
    public String toString() {
        return "Role{" +
                "id=" + id +
                ", name='" + name + '\'' +
                '}';
    }
}

Spring Boot

We use spring boot to start our application.

package com.memorynotfound.spring.security;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class Run {

    public static void main(String[] args) {
        SpringApplication.run(Run.class, args);
    }
}

Thyemeleaf Templates

The thymeleaf pages are build with bootstrap and jquery. All templates are located in the src/main/resources/templates folder.

User Registration Page

In the user registration page we have multiple input fields. For each input field we have a corresponding error messages. On the top of the form we also have some global error messages.

<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="utf-8"/>
    <meta http-equiv="X-UA-Compatible" content="IE=edge"/>
    <meta name="viewport" content="width=device-width, initial-scale=1"/>

    <link rel="stylesheet" type="text/css" th:href="@{/webjars/bootstrap/3.3.7/css/bootstrap.min.css}"/>
    <link rel="stylesheet" type="text/css" th:href="@{/css/main.css}"/>

    <title>Registration</title>
</head>
<body>
<div class="container">
    <div class="row">
        <div class="col-md-6 col-md-offset-3">

            <div th:if="${param.success}">
                <div class="alert alert-info">
                    You've successfully registered to our awesome app!
                </div>
            </div>

            <h1>Registration</h1>
            <form th:action="@{/registration}" th:object="${user}" method="post">

                <p class="error-message"
                   th:if="${#fields.hasGlobalErrors()}"
                   th:each="error : ${#fields.errors('global')}"
                   th:text="${error}">Validation error</p>

                <div class="form-group"
                     th:classappend="${#fields.hasErrors('firstName')}? 'has-error':''">
                    <label for="firstName" class="control-label">First name</label>
                    <input id="firstName"
                           class="form-control"
                           th:field="*{firstName}"/>
                    <p class="error-message"
                       th:each="error: ${#fields.errors('firstName')}"
                       th:text="${error}">Validation error</p>
                </div>
                <div class="form-group"
                     th:classappend="${#fields.hasErrors('lastName')}? 'has-error':''">
                    <label for="lastName" class="control-label">Last name</label>
                    <input id="lastName"
                           class="form-control"
                           th:field="*{lastName}"/>
                    <p class="error-message"
                       th:each="error : ${#fields.errors('lastName')}"
                       th:text="${error}">Validation error</p>
                </div>
                <div class="form-group"
                     th:classappend="${#fields.hasErrors('email')}? 'has-error':''">
                    <label for="email" class="control-label">E-mail</label>
                    <input id="email"
                           class="form-control"
                           th:field="*{email}"/>
                    <p class="error-message"
                       th:each="error : ${#fields.errors('email')}"
                       th:text="${error}">Validation error</p>
                </div>
                <div class="form-group"
                     th:classappend="${#fields.hasErrors('confirmEmail')}? 'has-error':''">
                    <label for="confirmEmail" class="control-label">Confirm e-mail</label>
                    <input id="confirmEmail"
                           class="form-control"
                           th:field="*{confirmEmail}"/>
                    <p class="error-message"
                       th:each="error : ${#fields.errors('confirmEmail')}"
                       th:text="${error}">Validation error</p>
                </div>
                <div class="form-group"
                     th:classappend="${#fields.hasErrors('password')}? 'has-error':''">
                    <label for="password" class="control-label">Password</label>
                    <input id="password"
                           class="form-control"
                           type="password"
                           th:field="*{password}"/>
                    <p class="error-message"
                       th:each="error : ${#fields.errors('password')}"
                       th:text="${error}">Validation error</p>
                </div>
                <div class="form-group"
                     th:classappend="${#fields.hasErrors('confirmPassword')}? 'has-error':''">
                    <label for="confirmPassword" class="control-label">Confirm password</label>
                    <input id="confirmPassword"
                           class="form-control"
                           type="password"
                           th:field="*{confirmPassword}"/>
                    <p class="error-message"
                       th:each="error : ${#fields.errors('confirmPassword')}"
                       th:text="${error}">Validation error</p>
                </div>
                <div class="form-group"
                     th:classappend="${#fields.hasErrors('terms')}? 'has-error':''">
                    <input id="terms"
                           type="checkbox"
                           th:field="*{terms}"/>
                    <label class="control-label" for="terms">
                        I agree with the <a href="#">terms and conditions</a> for Registration.
                    </label>
                    <p class="error-message"
                       th:each="error : ${#fields.errors('terms')}"
                       th:text="${error}">Validation error</p>
                </div>
                <div class="form-group">
                    <button type="submit" class="btn btn-success">Register</button>
                    <span>Already registered? <a href="/" th:href="@{/login}">Login here</a></span>
                </div>

            </form>
        </div>
    </div>
</div>

<script type="text/javascript" th:src="@{/webjars/jquery/3.2.1/jquery.min.js/}"></script>
<script type="text/javascript" th:src="@{/webjars/bootstrap/3.3.7/js/bootstrap.min.js}"></script>

</body>
</html>

Index Page

The index page can be accessed via http://localhost:8080/ after a successful login.

<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="utf-8"/>
    <meta http-equiv="X-UA-Compatible" content="IE=edge"/>
    <meta name="viewport" content="width=device-width, initial-scale=1"/>

    <link rel="stylesheet" type="text/css" th:href="@{/webjars/bootstrap/3.3.7/css/bootstrap.min.css}"/>
    <link rel="stylesheet" type="text/css" th:href="@{/css/main.css}"/>

    <title>Registration</title>
</head>
<body>
<div class="container">
    <h1>Spring Security User Registration with Hibernate and Thymeleaf</h1>
</div>

<script type="text/javascript" th:src="@{/webjars/jquery/3.2.1/jquery.min.js/}"></script>
<script type="text/javascript" th:src="@{/webjars/bootstrap/3.3.7/js/bootstrap.min.js}"></script>

</body>
</html>

Login Page

When the user is registered, he is able to login via the login page.

<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="utf-8"/>
    <meta http-equiv="X-UA-Compatible" content="IE=edge"/>
    <meta name="viewport" content="width=device-width, initial-scale=1"/>

    <link rel="stylesheet" type="text/css" th:href="@{/webjars/bootstrap/3.3.7/css/bootstrap.min.css}"/>
    <link rel="stylesheet" type="text/css" th:href="@{/css/main.css}"/>

    <title>Registration</title>
</head>
<body>
<div class="container">

    <div class="row">
        <div class="col-md-6 col-md-offset-3">
            <h1>Login page</h1>
            <form th:action="@{/login}" method="post">
                <div th:if="${param.error}">
                    <div class="alert alert-danger">
                        Invalid username or password.
                    </div>
                </div>
                <div th:if="${param.logout}">
                    <div class="alert alert-info">
                        You have been logged out.
                    </div>
                </div>
                <div class="form-group">
                    <label for="username">Username</label>:
                    <input type="text"
                           id="username"
                           name="username"
                           class="form-control"
                           autofocus="autofocus"
                           placeholder="Username"/>
                </div>
                <div class="form-group">
                    <label for="password">Password</label>:
                    <input type="password"
                           id="password"
                           name="password"
                           class="form-control"
                           placeholder="Password"/>
                </div>
                <div class="form-group">
                    <div class="row">
                        <div class="col-sm-6 col-sm-offset-3">
                            <input type="submit"
                                   name="login-submit"
                                   id="login-submit"
                                   class="form-control btn btn-info"
                                   value="Log In"/>
                        </div>
                    </div>
                </div>
                <div class="form-group">
                    <span>New user? <a href="/" th:href="@{/registration}">Register here</a></span>
                </div>
            </form>
        </div>
    </div>


</div>

<script type="text/javascript" th:src="@{/webjars/jquery/3.2.1/jquery.min.js/}"></script>
<script type="text/javascript" th:src="@{/webjars/bootstrap/3.3.7/js/bootstrap.min.js}"></script>

</body>
</html>

Custom Stylesheet

The main.css stylesheet is located in the src/main/resources/static/css folder.

h1 {
    color: #78ab46;
}

.error-message {
    color: #a94442;
}

.error-message:first-letter {
    text-transform: capitalize;
}

Demo

Access http://localhost:8080/registration and fill in some invalid fields.

After successful registration, the user is redirected to http://localhost:8080/registration?success.

You can go to the login page at http://localhost:8080/login and login with the registrated user.

Integration Tests

We wrote some integration tests using Spring Security, H2, MockMvc and Hiberante to validate the user registration procedure.

We use the H2 in memory database and configure it using the it-application.yml file located in the src/test/resources folder.

# ===============================
# = H2 data source
# ===============================
spring:
  datasource:
    url: jdbc:h2:mem:spring-security-hibernate-test;DB_CLOSE_DELAY=-1;DB_CLOSE_ON_EXIT=FALSE
    platform: h2
    username: sa
    password:

# ===============================
# = JPA configurations
# ===============================
  jpa:
    show-sql: true
    hibernate:
      ddl-auto: create-drop
      naming-strategy: org.hibernate.cfg.ImprovedNamingStrategy
    database-platform: H2

We can initialize our in memory database using the data.sql file located in the src/test/resources folder.

INSERT INTO user (id, first_name, last_name, email, password) VALUES (1, 'Memory', 'Not Found', '[email protected]', '$2a$10$RyY4bXtV3LKkDCutlUTYDOKd2AiJYZGp4Y7MPVdLzWzT1RX.JRZyG');

INSERT INTO role (id, name) VALUES (1, 'ROLE_ADMIN');
INSERT INTO role (id, name) VALUES (2, 'ROLE_MANAGER');
INSERT INTO role (id, name) VALUES (3, 'ROLE_USER');

INSERT INTO users_roles (user_id, role_id) VALUES (1, 1);
INSERT INTO users_roles (user_id, role_id) VALUES (1, 2);

We can write some integration tests using MockMvc.

package com.memorynotfound.spring.security.test;

import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.autoconfigure.web.servlet.AutoConfigureMockMvc;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.http.MediaType;
import org.springframework.test.context.ActiveProfiles;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;
import org.springframework.test.web.servlet.MockMvc;

import static org.springframework.security.test.web.servlet.request.SecurityMockMvcRequestPostProcessors.csrf;
import static org.springframework.test.web.servlet.request.MockMvcRequestBuilders.post;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.*;

@SpringBootTest
@ActiveProfiles("it")
@AutoConfigureMockMvc
@RunWith(SpringJUnit4ClassRunner.class)
public class UserRegistrationIT {

    @Autowired
    private MockMvc mockMvc;

    @Test
    public void submitRegistrationAccountExists() throws Exception {
        this.mockMvc
                .perform(
                        post("/registration")
                                .with(csrf())
                                .contentType(MediaType.APPLICATION_FORM_URLENCODED)
                                .param("firstName", "Memory")
                                .param("lastName", "Not Found")
                                .param("email", "[email protected]nd.com")
                                .param("confirmEmail", "[email protected]")
                                .param("password", "password")
                                .param("confirmPassword", "password")
                                .param("terms", "on")
                )
                .andExpect(model().hasErrors())
                .andExpect(model().attributeHasFieldErrors("user", "email"))
                .andExpect(status().isOk());
    }

    @Test
    public void submitRegistrationPasswordNotMatching() throws Exception {
        this.mockMvc
                .perform(
                        post("/registration")
                                .with(csrf())
                                .contentType(MediaType.APPLICATION_FORM_URLENCODED)
                                .param("firstName", "Memory")
                                .param("lastName", "Not Found")
                                .param("email", "[email protected]")
                                .param("confirmEmail", "[email protected]")
                                .param("password", "password")
                                .param("confirmPassword", "invalid")
                                .param("terms", "on")
                )
                .andExpect(model().hasErrors())
                .andExpect(model().attributeHasErrors("user"))
                .andExpect(status().isOk());
    }

    @Test
    public void submitRegistrationEmailNotMatching() throws Exception {
        this.mockMvc
                .perform(
                        post("/registration")
                                .with(csrf())
                                .contentType(MediaType.APPLICATION_FORM_URLENCODED)
                                .param("firstName", "Memory")
                                .param("lastName", "Not Found")
                                .param("email", "[email protected]")
                                .param("confirmEmail", "[email protected]")
                                .param("password", "password")
                                .param("confirmPassword", "invalid")
                                .param("terms", "on")
                )
                .andExpect(model().hasErrors())
                .andExpect(model().attributeHasErrors("user"))
                .andExpect(status().isOk());
    }

    @Test
    public void submitRegistrationSuccess() throws Exception {
        this.mockMvc
                .perform(
                        post("/registration")
                                .with(csrf())
                                .contentType(MediaType.APPLICATION_FORM_URLENCODED)
                                .param("firstName", "Memory")
                                .param("lastName", "Not Found")
                                .param("email", "[email protected]")
                                .param("confirmEmail", "[email protected]")
                                .param("password", "password")
                                .param("confirmPassword", "password")
                                .param("terms", "on")
                )
                .andExpect(redirectedUrl("/registration?success"))
                .andExpect(status().is3xxRedirection());
    }

}

Download
