Spring JMS Error Handling Configuration Example

摘要: This tutorial demonstrates error handling using Spring JMS. We create a custom JMS error handler which is capable of handling all errors thrown during transportation, conversion and validation errors.

This tutorial demonstrates error handling using Spring JMS. We create a custom JMS error handler which is capable of handling all errors thrown during transportation, conversion and validation errors.

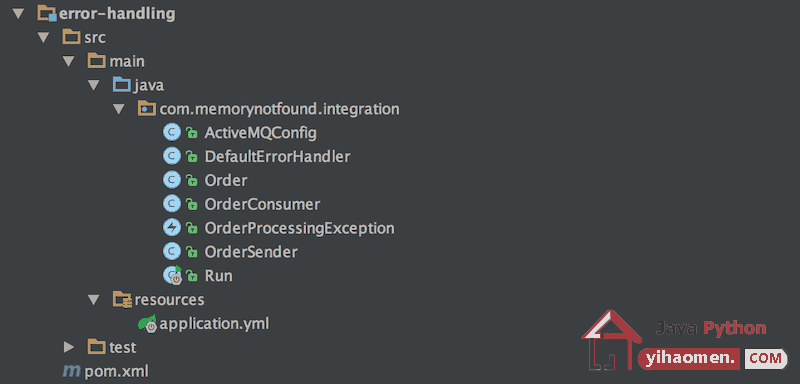

Project Structure

Let’s start by looking at the project structure.

Maven Dependencies

We use Apache Maven to manage our project dependencies. Make sure the following dependencies reside on the class-path.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
                             http://maven.apache.org/xsd/maven-4.0.0.xsd">

    <modelVersion>4.0.0</modelVersion>
    <groupId>com.memorynotfound.integration.jms.activemq</groupId>
    <artifactId>error-handling</artifactId>
    <version>1.0.0-SNAPSHOT</version>
    <url>https://memorynotfound.com</url>
    <name>Spring Integration + ActiveMQ - ${project.artifactId}</name>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>1.5.7.RELEASE</version>
    </parent>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-activemq</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.activemq</groupId>
            <artifactId>activemq-broker</artifactId>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
            <plugin>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

Spring JMS ActiveMQ Configuration

Spring Boot can automatically configure a ConnectionFactory when it detects that ActiveMQ is available on the class-path. If the broker is present, an embedded broker is started and configured automatically (as long as no broker URL is specified through configuration). For conveniences we created and configured an embedded activeMQ server. The application.yml file is located in the src/main/resources/ folder. This configuration file creates and configures an embedded ActiveMQ broker.

spring:

  # Embedded ActiveMQ Configuration
  activemq:
      broker-url: vm://embedded?broker.persistent=false,useShutdownHook=false
      in-memory: true
      non-blocking-redelivery: true
      packages:
        trust-all: false
        trusted: com.memorynotfound
      pool:
        block-if-full: true
        block-if-full-timeout: -1
        create-connection-on-startup: true
        enabled: false
        expiry-timeout: 0
        idle-timeout: 30000
        max-connections: 1
        maximum-active-session-per-connection: 500
        reconnect-on-exception: true
        time-between-expiration-check: -1
        use-anonymous-producers: true

  # Spring JMS Settings
  jms:
    listener:
      acknowledge-mode: auto
      auto-startup: true
      concurrency: 2
      max-concurrency: 2
    pub-sub-domain: false
    template:
      default-destination:
      delivery-mode: non_persistent
      priority: 100
      qos-enabled: true
      receive-timeout: 1000
      time-to-live: 36000

# Logging configuration print only current thread and messages for tutorial purposes
logging:
  pattern:
    console: "[%thread]:%msg%n"
  level:
      - ".=info"
      - "com.memorynotfound=debug"
      - "org.springframework=info"

Spring ActiveMQ Configuration

The @EnableJms enables JMS listener annotated endpoints that are created under the cover by JmsListenerContainerFactory. The JmsListenerContainerFactory is responsible to create the listener container responsible for a particular endpoint. The @EnableJms annotation also enables detection of JmsListener annotations on any Spring-managed beans in the container.

We can set a custom error handler by configuring the DefaultJmsListenerContainerFactory class using the setErrorHandler() method.

The MappingJackson2MessageConverter uses Jackson to convert messages to and from JSON.

package com.memorynotfound.integration;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.jms.annotation.EnableJms;
import org.springframework.jms.annotation.JmsListenerConfigurer;
import org.springframework.jms.config.DefaultJmsListenerContainerFactory;
import org.springframework.jms.config.JmsListenerContainerFactory;
import org.springframework.jms.config.JmsListenerEndpointRegistrar;
import org.springframework.jms.support.converter.MappingJackson2MessageConverter;
import org.springframework.jms.support.converter.MessageConverter;
import org.springframework.jms.support.converter.MessageType;

import javax.jms.ConnectionFactory;

@EnableJms
@Configuration
@SuppressWarnings("SpringJavaAutowiringInspection")
public class ActiveMQConfig implements JmsListenerConfigurer {

    public static final String ORDER_QUEUE = "order-queue";

    @Autowired
    private ConnectionFactory connectionFactory;

    @Override
    public void configureJmsListeners(JmsListenerEndpointRegistrar registrar) {
        registrar.setContainerFactory(containerFactory());
    }

    @Bean
    public JmsListenerContainerFactory<?> containerFactory() {
        DefaultJmsListenerContainerFactory factory = new DefaultJmsListenerContainerFactory();
        factory.setConnectionFactory(connectionFactory);
        factory.setErrorHandler(new DefaultErrorHandler());
        factory.setMessageConverter(messageConverter());
        return factory;
    }

    @Bean
    public MessageConverter messageConverter() {
        MappingJackson2MessageConverter converter = new MappingJackson2MessageConverter();
        converter.setTargetType(MessageType.TEXT);
        converter.setTypeIdPropertyName("_type");
        return converter;
    }

}

Order Object

We use the Order object to send an receive JMS message to and from a JMS Message Queue.

package com.memorynotfound.integration;

import java.io.Serializable;
import java.math.BigDecimal;

public class Order implements Serializable {

    private String from;
    private String to;
    private BigDecimal amount;

    public Order() {
    }

    public Order(String from, String to, BigDecimal amount) {
        this.from = from;
        this.to = to;
        this.amount = amount;
    }

    public String getFrom() {
        return from;
    }

    public void setFrom(String from) {
        this.from = from;
    }

    public String getTo() {
        return to;
    }

    public void setTo(String to) {
        this.to = to;
    }

    public BigDecimal getAmount() {
        return amount;
    }

    public void setAmount(BigDecimal amount) {
        this.amount = amount;
    }

    @Override
    public String toString() {
        return "Order{" +
                "from='" + from + '\'' +
                ", to='" + to + '\'' +
                ", amount=" + amount +
                '}';
    }
}

Spring JMS Custom Error Handling

We create a custom error handler by implementing the ErrorHandler interface. This implies us to overwrite the handleError method. This allows us to intercept all errors during JMS message transportation, conversion or validations.

package com.memorynotfound.integration;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.util.ErrorHandler;

public class DefaultErrorHandler implements ErrorHandler {

    private static Logger log = LoggerFactory.getLogger(OrderConsumer.class);

    @Override
    public void handleError(Throwable t) {
        log.warn("spring jms custom error handling example");
        log.error(t.getCause().getMessage());
    }
}

Sending Messages to a JMS Queue

Now we have configured the ActiveMQ message broker, we can start sending messages to an ActiveMQ Queue. We use the JmsTemplate to send JMS messages to the queue. We simply need to pass in a destination and message arguments and the JmsTemplate handles the rest.

package com.memorynotfound.integration;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.jms.core.JmsTemplate;
import org.springframework.stereotype.Service;

import static com.memorynotfound.integration.ActiveMQConfig.ORDER_QUEUE;

@Service
public class OrderSender {

    private static Logger log = LoggerFactory.getLogger(OrderSender.class);

    @Autowired
    private JmsTemplate jmsTemplate;

    public void sendQueue(Order order) {
        log.info("sending with convertAndSend() to " + ORDER_QUEUE + " <" + order + ">");
        jmsTemplate.convertAndSend(ORDER_QUEUE, order);
    }

}

Creating Custom Exception

We created a custom OrderProcessingException to demonstrate that an error has occurred during the order processing stage.

package com.memorynotfound.integration;

public class OrderProcessingException extends RuntimeException {

    public OrderProcessingException(String message) {
        super(message);
    }
}

Consuming JMS Messages

The @JmsListener annotation marks a method to be the target of a JMS message listener on the specified destination. After the JMS message is received we throw a new OrderProcessingException that we created to indicate that something went wrong during the order processing.

package com.memorynotfound.integration;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.jms.annotation.JmsListener;
import org.springframework.messaging.handler.annotation.Payload;
import org.springframework.stereotype.Component;
import javax.validation.Valid;
import static com.memorynotfound.integration.ActiveMQConfig.ORDER_QUEUE;

@Component
public class OrderConsumer {

    private static Logger log = LoggerFactory.getLogger(OrderConsumer.class);

    @JmsListener(destination = ORDER_QUEUE)
    public void receiveMessage(@Payload Order order) {
        log.info("received <" + order + ">");

        // processing or the order
        throw new OrderProcessingException("problem occurred while processing the order.");
    }

}
