Spring Boot Thymeleaf Configuration Example

摘要: This tutorial demonstrates how to configure Spring Boot and Thymeleaf. We are creating a simple Spring Boot Thymeleaf Example. In this example we configure Spring Boot using application.yml file and place the Thymeleaf templates in the src/main/resources/templates folder. We also utilise org.webjars to load static resources like bootstrap and jquery.

This tutorial demonstrates how to configure Spring Boot and Thymeleaf. We are creating a simple Spring Boot Thymeleaf Example. In this example we configure Spring Boot using application.yml file and place the Thymeleaf templates in the src/main/resources/templates folder. We also utilise org.webjars to load static resources like bootstrap and jquery.

Project Structure

Let’s start by looking at the project structure.

Maven Dependencies

We use Apache Maven to manage our project dependencies. Make sure the following dependencies reside on the class-path. By default spring-boot uses thymeleaf version 2. We can change this by overwriting the thymeleaf.version and thymeleaf-layout-dialect.versionmaven properties. Note: we also use org.webjars to load bootstrap and jquery.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
                             http://maven.apache.org/xsd/maven-4.0.0.xsd">

    <modelVersion>4.0.0</modelVersion>
    <groupId>com.memorynotfound.spring.mvc</groupId>
    <artifactId>thymeleaf</artifactId>
    <version>1.0.0-SNAPSHOT</version>
    <url>http://memorynotfound.com</url>
    <name>Spring MVC - ${project.artifactId}</name>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>1.5.8.RELEASE</version>
    </parent>

    <properties>
        <java.version>1.8</java.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <thymeleaf.version>3.0.8.RELEASE</thymeleaf.version>
        <thymeleaf-layout-dialect.version>2.2.2</thymeleaf-layout-dialect.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>

        <!-- webjar bootstrap and jquery dependencies -->
        <dependency>
            <groupId>org.webjars</groupId>
            <artifactId>bootstrap</artifactId>
            <version>3.3.7</version>
        </dependency>
        <dependency>
            <groupId>org.webjars</groupId>
            <artifactId>jquery</artifactId>
            <version>3.2.1</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

Spring Boot

We use spring boot to bootstrap our application. The @SpringBootApplication triggers the EnableAutoConfiguration and ComponentScan. This is a convenience annotation that is equivalent to declaring @Configuration, @EnableAutoConfiguration and @Configuration.

package com.memorynotfound.thymeleaf;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class Application {

    public static void main(String... args) throws Exception {
        SpringApplication.run(Application.class, args);
    }

}

Adding Model Attributes in Spring Controller

On application boot time, the message.home property is loaded from the application.yml file. We add this property to the Model which’ll be available to use in the thymeleaf template.

package com.memorynotfound.thymeleaf;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;

@Controller
public class HomeController {

    private static final Logger log = LoggerFactory.getLogger(HomeController.class);

    @Value("${messages.home:default-value}")
    private String message = "Hello World";

    @RequestMapping("/")
    public String welcome(Model model) {
        log.info("Spring Boot Thymeleaf Configuration Example");
        model.addAttribute("message", message);
        return "home";
    }

}

Configure Spring boot and Thymeleaf

We configure spring-boot and thymeleaf using the application.yml file located in the src/main/resources folder.

  • spring.thymeleaf.cache – enable/disable template caching.
  • spring.thymeleaf.check-template – check that the template exists before rendering it.
  • spring.thymeleaf.check-template-location – check that the templates location exists.
  • spring.thymeleaf.content-type – specifies content-type value.
  • spring.thymeleaf.enabled – enable mvc thymeleaf view resolution.
  • spring.thymeleaf.encoding – specifies template encoding.
  • spring.thymeleaf.excluded-view-names – comma-separated list of view names that should be excluded from resolution.
  • spring.thymeleaf.mode – template mode to be applied to templates. See also StandardTemplateModeHandlers.
  • spring.thymeleaf.prefix – specifies the prefix that gets prepended to view names when building a URL.
  • spring.thymeleaf.suffix – specifies the suffix that gets appended to view names when building a URL.
  • spring.thymeleaf.template-resolver-order – specifies the order of the template resolver in the chain.
  • spring.thymeleaf.view-names – comma-separated list of view names that can be resolved.
server:
  port: ${PORT:8081}

messages:
  home: Hello, Memorynotfound!

spring:
  thymeleaf:
    cache: false
    check-template: true
    check-template-location: true
    content-type: text/html
    enabled: true
    encoding: UTF-8
    # excluded-view-names:
    # mode: HTML5
    # prefix: /templates/
    # suffix: .html
    # template-resolver-order:
    # view-names:

logging:
  level:
      - ".=info"
      - "com.memorynotfound=debug"
      - "org.springframework=info"

Creating Thymeleaf Template

This is an example thymeleaf template named: home.html. Located in the src/main/resources/templates folder.

<!DOCTYPE HTML>
<html xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="utf-8"/>
    <meta http-equiv="X-UA-Compatible" content="IE=edge"/>
    <meta name="viewport" content="width=device-width, initial-scale=1"/>

    <link rel="stylesheet" type="text/css" href="webjars/bootstrap/3.3.7/css/bootstrap.min.css"/>
    <link rel="stylesheet" th:href="@{/css/main.css}"/>

    <title>Getting Started: Serving Web Content</title>
</head>
<body>

<nav class="navbar navbar-inverse navbar-static-top">
    <div class="container">
        <div class="navbar-header">
            <button type="button" class="navbar-toggle collapsed" data-toggle="collapse" data-target="#navbar" aria-expanded="false" aria-controls="navbar">
                <span class="sr-only">Toggle navigation</span>
                <span class="icon-bar"></span>
                <span class="icon-bar"></span>
                <span class="icon-bar"></span>
            </button>
            <a class="navbar-brand" href="#">
                <img th:src="@{/img/logo.png}" alt="memorynotfound logo"/>
            </a>
        </div>
        <div id="navbar" class="collapse navbar-collapse">
            <ul class="nav navbar-nav">
                <li class="active"><a href="#">Home</a></li>
                <li><a href="#about">About</a></li>
                <li><a href="#contact">Contact</a></li>
            </ul>
        </div>
    </div>
</nav>

<div class="container">
    <div class="starter-template">
        <h1>Spring Boot Thymeleaf Configuration Example</h1>
        <h2 th:text="${message}"></h2>
    </div>
</div>

<!-- include javascript -->
<script type="text/javascript" src="webjars/jquery/3.2.1/jquery.min.js/"></script>
<script type="text/javascript" src="webjars/bootstrap/3.3.7/js/bootstrap.min.js"></script>

</body>
</html>

The main.css file located in the src/main/resources/static/css folder.

h1 {
    color: #78ab46;
}

h2 {
    color: #2189ce
}

Run Spring Boot application

When we run the spring boot application we receive the following output.

  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/
 :: Spring Boot ::        (v1.5.8.RELEASE)

2017-10-30 11:56:53.989  INFO 61616 --- [           main] c.memorynotfound.thymeleaf.Application   : Starting Application on darwin-13.local with PID 61616 (/Users/camelcode/Documents/projects/memorynotfound/tutorials/java/spring/spring-mvc/thymeleaf/target/classes started by camelcode in /Users/camelcode/Documents/projects/memorynotfound/tutorials/java)
2017-10-30 11:56:53.994  INFO 61616 --- [           main] c.memorynotfound.thymeleaf.Application   : No active profile set, falling back to default profiles: default
2017-10-30 11:56:54.819  INFO 61616 --- [           main] ationConfigEmbeddedWebApplicationContext : Refreshing org.springframework.boot[email protected]72bc6553: startup date [Mon Oct 30 11:56:54 CET 2017]; root of context hierarchy
2017-10-30 11:56:57.134  INFO 61616 --- [           main] s.b.c.e.t.TomcatEmbeddedServletContainer : Tomcat initialized with port(s): 8081 (http)
2017-10-30 11:56:57.154  INFO 61616 --- [           main] o.apache.catalina.core.StandardService   : Starting service [Tomcat]
2017-10-30 11:56:57.158  INFO 61616 --- [           main] org.apache.catalina.core.StandardEngine  : Starting Servlet Engine: Apache Tomcat/8.5.23
2017-10-30 11:56:57.333  INFO 61616 --- [ost-startStop-1] o.a.c.c.C.[Tomcat].[localhost].[/]       : Initializing Spring embedded WebApplicationContext
2017-10-30 11:56:57.333  INFO 61616 --- [ost-startStop-1] o.s.web.context.ContextLoader            : Root WebApplicationContext: initialization completed in 2519 ms
2017-10-30 11:56:57.567  INFO 61616 --- [ost-startStop-1] o.s.b.w.servlet.ServletRegistrationBean  : Mapping servlet: 'dispatcherServlet' to [/]
2017-10-30 11:56:57.573  INFO 61616 --- [ost-startStop-1] o.s.b.w.servlet.FilterRegistrationBean   : Mapping filter: 'characterEncodingFilter' to: [/*]
2017-10-30 11:56:57.574  INFO 61616 --- [ost-startStop-1] o.s.b.w.servlet.FilterRegistrationBean   : Mapping filter: 'hiddenHttpMethodFilter' to: [/*]
2017-10-30 11:56:57.574  INFO 61616 --- [ost-startStop-1] o.s.b.w.servlet.FilterRegistrationBean   : Mapping filter: 'httpPutFormContentFilter' to: [/*]
2017-10-30 11:56:57.575  INFO 61616 --- [ost-startStop-1] o.s.b.w.servlet.FilterRegistrationBean   : Mapping filter: 'requestContextFilter' to: [/*]
2017-10-30 11:56:58.206  INFO 61616 --- [           main] s.w.s.m.m.a.RequestMappingHandlerAdapter : Looking for @ControllerAdvice: org.springframework.boot[email protected]72bc6553: startup date [Mon Oct 30 11:56:54 CET 2017]; root of context hierarchy
2017-10-30 11:56:58.349  INFO 61616 --- [           main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/]}" onto public java.lang.String com.memorynotfound.thymeleaf.HomeController.welcome(org.springframework.ui.Model)
2017-10-30 11:56:58.354  INFO 61616 --- [           main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/error]}" onto public org.springframework.http.ResponseEntity<java.util.Map<java.lang.String, java.lang.Object>> org.springframework.boot.autoconfigure.web.BasicErrorController.error(javax.servlet.http.HttpServletRequest)
2017-10-30 11:56:58.354  INFO 61616 --- [           main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/error],produces=[text/html]}" onto public org.springframework.web.servlet.ModelAndView org.springframework.boot.autoconfigure.web.BasicErrorController.errorHtml(javax.servlet.http.HttpServletRequest,javax.servlet.http.HttpServletResponse)
2017-10-30 11:56:58.403  INFO 61616 --- [           main] o.s.w.s.handler.SimpleUrlHandlerMapping  : Mapped URL path [/webjars/**] onto handler of type [class org.springframework.web.servlet.resource.ResourceHttpRequestHandler]
2017-10-30 11:56:58.404  INFO 61616 --- [           main] o.s.w.s.handler.SimpleUrlHandlerMapping  : Mapped URL path [/**] onto handler of type [class org.springframework.web.servlet.resource.ResourceHttpRequestHandler]
2017-10-30 11:56:58.511  INFO 61616 --- [           main] o.s.w.s.handler.SimpleUrlHandlerMapping  : Mapped URL path [/**/favicon.ico] onto handler of type [class org.springframework.web.servlet.resource.ResourceHttpRequestHandler]
2017-10-30 11:56:58.604  WARN 61616 --- [           main] org.thymeleaf.templatemode.TemplateMode  : [THYMELEAF][main] Template Mode 'HTML5' is deprecated. Using Template Mode 'HTML' instead.
2017-10-30 11:56:59.532  INFO 61616 --- [           main] o.s.j.e.a.AnnotationMBeanExporter        : Registering beans for JMX exposure on startup
2017-10-30 11:56:59.618  INFO 61616 --- [           main] s.b.c.e.t.TomcatEmbeddedServletContainer : Tomcat started on port(s): 8081 (http)
2017-10-30 11:56:59.628  INFO 61616 --- [           main] c.memorynotfound.thymeleaf.Application   : Started Application in 6.81 seconds (JVM running for 7.715)
2017-10-30 11:57:40.789  INFO 61616 --- [nio-8081-exec-1] o.a.c.c.C.[Tomcat].[localhost].[/]       : Initializing Spring FrameworkServlet 'dispatcherServlet'
2017-10-30 11:57:40.790  INFO 61616 --- [nio-8081-exec-1] o.s.web.servlet.DispatcherServlet        : FrameworkServlet 'dispatcherServlet': initialization started
2017-10-30 11:57:40.811  INFO 61616 --- [nio-8081-exec-1] o.s.web.servlet.DispatcherServlet        : FrameworkServlet 'dispatcherServlet': initialization completed in 21 ms
2017-10-30 11:57:40.844  INFO 61616 --- [nio-8081-exec-1] c.m.thymeleaf.HomeController             : Spring Boot Thymeleaf Configuration Example

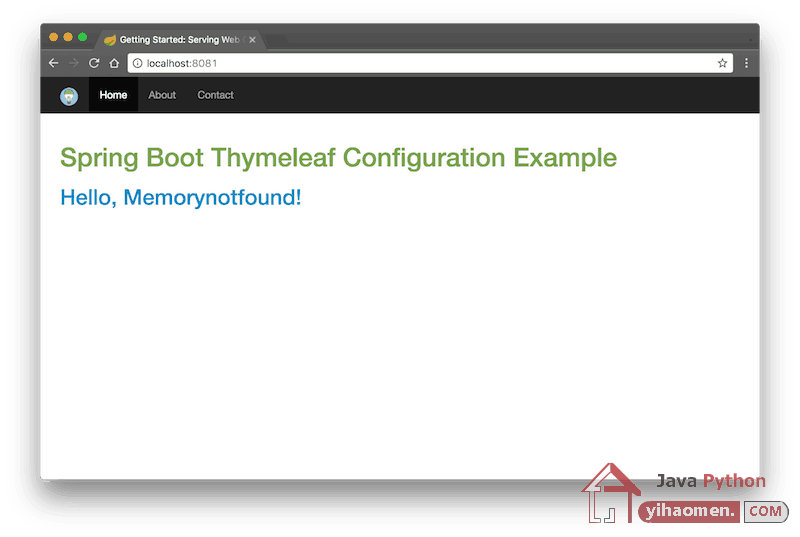

Example Output

The generated spring boot thymeleaf template looks like this.

Download
